Complete coupling sets with all necessary components for immediate use.
Complete Couplings Overview

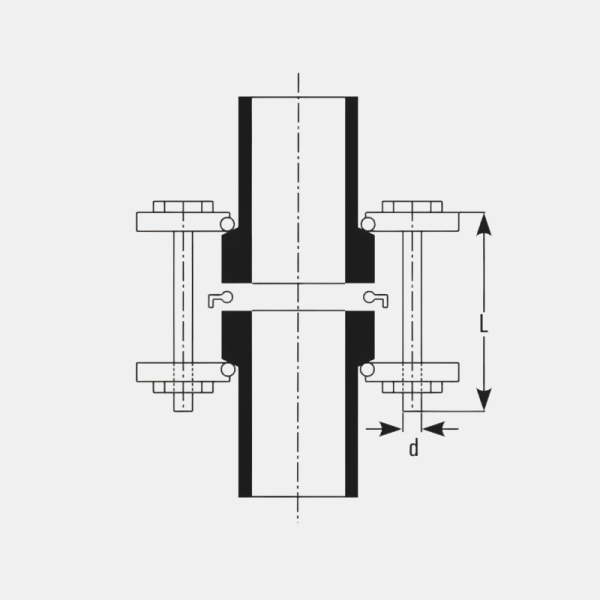

A “complete coupling” is a prefabricated coupling assembly composed of two backing flanges, an insert, and complementary nut & bolt sets. This ready-to-use assembly provides a robust interface for joining glassware modules or connecting glass to metal. These assemblies are typically offered in materials such as cast iron and mild steel, providing mechanical reinforcement and alignment support while maintaining seal integrity via the internal insert and gasket components. They are particularly useful in modular installations or in retrofit applications where ease of assembly and structural reliability are of importance. Their prefabricated nature reduces on-site complexity, alignment errors, and assembly time.
Specifications
Important technical details for complete couplings include:
– **Material Options**: Cast iron and mild steel for flanges and backing components
– **Component Composition**: Two backing flanges, gasket/insert, nut & bolt set
– **Compatibility**: Conforms to standard flange geometries and bolt patterns; suitable for integration with existing systems
– **Mechanical Strength**: Designed to resist flange forces and alignment stresses
– **Seal Interface**: Insert and gasket material (often PTFE or compatible elastomer) ensure seal integrity
– **Temperature & Pressure Tolerance**: Dependent on gasket and structural materials, suitable for typical chemical glassware ranges
– **Assembly**: Preassembled, with correct torqueing recommendations to avoid over-stressing glass
– **Customization**: May allow modifications in flange drilling or bolt pattern to match customer’s mating flanges
Applications
Complete couplings are applied in systems where glass modules must be joined securely, often under vacuum or pressure conditions. Some typical use cases include:
– Laboratory and pilot plant glass piping systems
– Glass reactor assemblies and modular expansion units
– Vacuum distillation, absorption and separation columns
– Retrofit or maintenance operations where preassembled coupling reduces downtime
– Glass to metal transitions requiring reliable mechanical support
– Chemical processing circuits involving corrosive chemicals, where coupling integrity is critical
By using complete couplings, engineers can ensure repeatable alignment, reduce installation errors, and facilitate maintenance and interchangeability in glassware networks.
