Key Features
- Glass construction
- Various mesh sizes
- Easy installation
- Chemical resistant
Glass packing supports for column packing materials.
Packing supports are essential components in glass column systems, designed to hold packings securely in place during operations. They ensure mechanical stability, prevent damage to packing material, and maintain efficiency in distillation, absorption, and extraction processes.
Two main types are available:
• Type A (standard) supports, made of fused glass rods, suitable for light to medium-duty operations.
• Type B (heavy duty) supports, made of vertically arranged glass plates tied with PTFE rods, designed for higher loads and larger diameters.
Additional accessories include PTFE perforated plates, which act as packing retainers to prevent lifting due to vapor velocity, and support plate assemblies, which integrate with pipe sections to allow greater flexibility, higher packing heights, and shorter delivery times compared to conventional systems. These assemblies combine glass, PTFE, and metal components to provide reliable, durable solutions for industrial and laboratory applications.

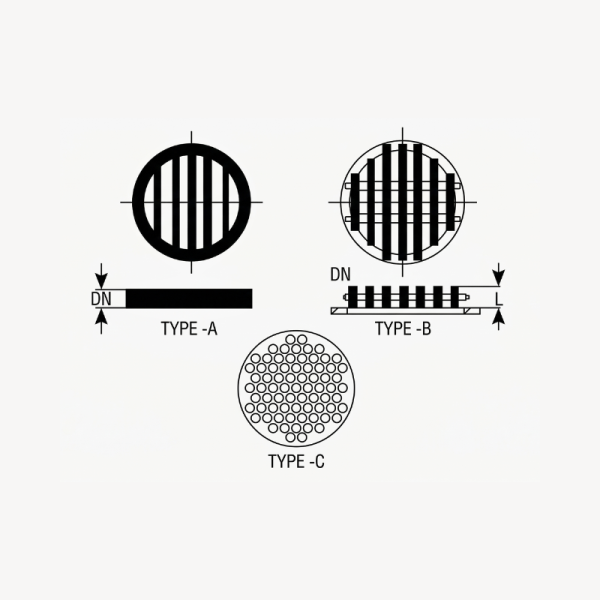

Packing Supports
Type A: Fused glass rods (light duty)
Type B: Glass plates with PTFE tie rods (heavy duty)
| Cat. Ref. | DN | L | Cross Section Area | Max Load (Kgs) | Min Packing Size | Type |
| CP3* | 80 | 10 | 45% | 10 | 12 | A |
| CP4* | 100 | 12 | 50% | 15 | 15 | A |
| CP6* | 150 | – | 55% | 30 | 25 | A |
| CP9* | 225 | 19 | 60% | 50 | 25 | A |
| CP12* | 300 | 19 | 65% | 75 | 25 | A |
| HD16 | 400 | 70 | 70% | 150 | 25 | B |
| HD18 | 450 | 70 | 70% | 200 | 25 | B |
| HD24 | 600 | 95 | 70% | 300 | 40 | B |
PTFE Perforated Plates
Used as packing retainers to prevent lifting due to vapor velocity. Can be clamped between components without gaskets.
| Cat. Ref. | DN | d | L |
| TCP3 | 80 | 99 | 7 |
| TCP4 | 100 | 132 | 9 |
| TCP6 | 150 | 184 | 10 |
| TCP9 | 225 | 254 | 12 |
| TCP12 | 300 | 340 | 16 |
Support Plate Assemblies
Consist of glass support plate, metal flange, PTFE O-ring, and nut-bolts. Provide higher cross-sectional area, more packing height, reduced inventory needs, and faster delivery.
| Cat. Ref. | DN | L | Cross Section Area | Max Load (Kgs) | Suitable Packing Size |
| LBE3* | 80 | 25 | 70% | 20 | 12 |
| LBE4* | 100 | 25 | 70% | 30 | 15 |
| LBE6* | 150 | 50 | 70% | 60 | 25 |
| LBE9* | 225 | 50 | 80% | 90 | 25 |
| LBE12* | 300 | 50 | 80% | 150 | 25 |
Items marked are available for faster delivery.
Packing supports and accessories are widely used in:
• Chemical industry: distillation, absorption, and reaction processes
• Pharmaceutical industry: purification and separation
• Petrochemical: refining and processing operations
• Laboratory setups: research and pilot-scale distillation
• Water treatment: separation and absorption processes
They are especially critical for:
• Supporting packing materials in glass columns
• Ensuring safe operation under vapor flow conditions
• Maintaining higher column efficiency
• Preventing packing displacement or fouling
