Crosses

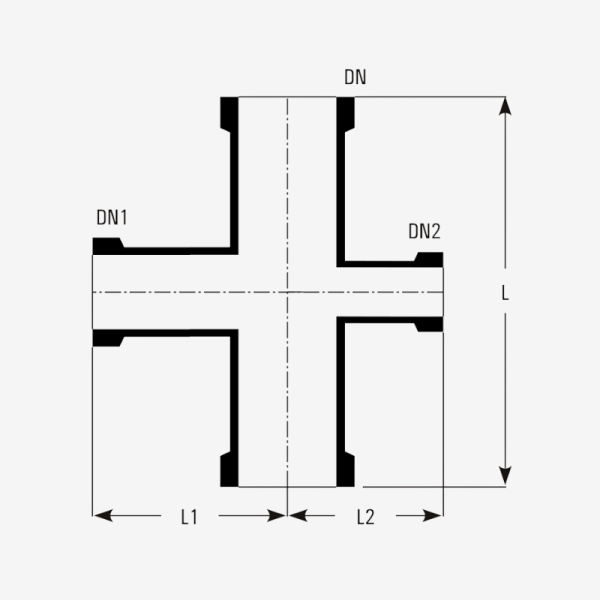

Crosses, Unequal Crosses, Closures & Blinds | Industrial Glass Pipe Fittings

Product Overview:

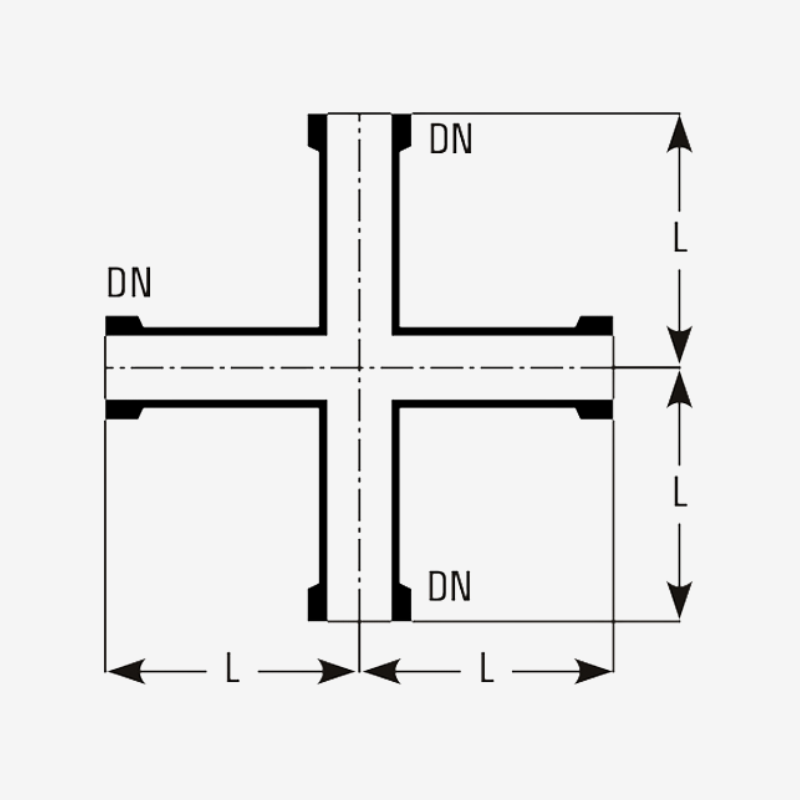

Goel’s glass crosses function as four-way junctions within pipeline systems, allowing fluid branching or merging across two perpendicular axes. The site references “Crosses” in the pipeline components listing, although the detailed page is marked as “READ MORE” and not fully elaborated. Given their similarity to standard glass fittings, they adopt the same inert, transparent, vacuum-compatible design ethos.

Crosses, Unequal Crosses, Closures, and Blinds are essential components in industrial glass pipeline systems, designed to ensure efficient fluid distribution, secure sealing, and system flexibility. Manufactured from high-quality Borosilicate Glass 3.3, these components provide superior resistance to corrosion, high temperatures, and chemical attack.

Key Features

Manufactured from Borosilicate Glass 3.3
Excellent chemical corrosion resistance
Four-way connection design
Compliance: Designed as per industrial glass pipeline standards
Pressure Rating: Suitable for vacuum and low to moderate pressure applications
Compatible with standard glass pipeline systems

Specifications

Although detailed numeric data was not provided publicly, inferred specifications include:
Vacuum Compatibility: Designed for full vacuum operation
Nominal Sizes: Likely matching standard pipeline DN range (15 to 800, or custom)
Geometry: Four ports at 90° intersections
Surface / Finish: Smooth internal surfaces to minimize pressure drop and fouling
Compatibility: Designed to integrate with other pipeline components (e.g. bends, reducers, tees)
Customization: Non-standard size or branch configurations likely available on request
Size Range: DN 12 to DN 300 (custom sizes available)
Connection Type: Flanged / Coupled glass pipeline systems
Temperature Resistance: Up to approx. 200°C (depending on operating conditions)

Applications

Glass crosses are suitable for:
Splitting or combining fluid streams in orthogonal directions
Configuring multi-branch networks in glass process lines
Enabling bypass lines or sampling branches in more complex flow schemes
Use in pilot plants or laboratory setups where observation and purity are essential
