Key Features
- Borosilicate glass construction
- Equal diameter connections
- Chemical resistant
- Suitable for high-temperature and vacuum applications
Equal Tees
Equal Tees
Equal Tees
Glass equal tees for connecting pipes of the same diameter | Equal Tees Manufacturer & Supplier | Industrial Pipe Fittings
Equal Tees Overview
Equal Tees Overview
Goel’s equal tees are glass pipeline fittings with three ports of identical diameter, used for splitting or joining fluid flow symmetrically. The Goel site provides catalogue tables listing “Equal Tees” (PT, PTU series) with DN and length (L) dimensions. Designed for precision flow management, Equal Tees ensure smooth branching of pipelines without affecting pressure balance.
Specifications
From the published catalogue data:
- Series / Codes: PT series (e.g. PT0.5, PT1, PT2, … PT12) for equal-diameter tees

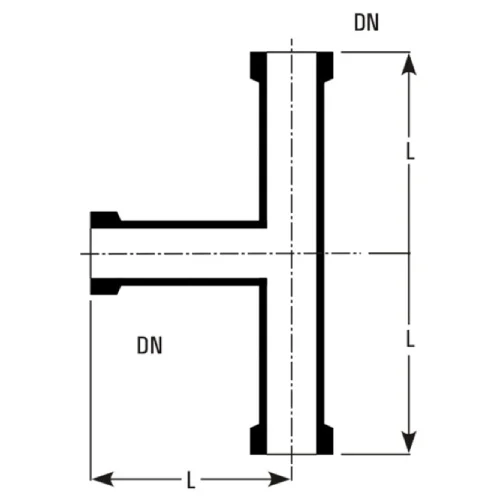

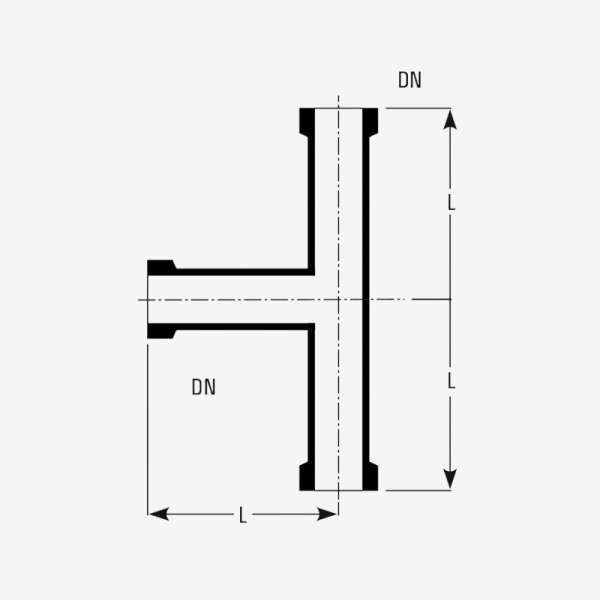

- DN and Length (L):
• PT0.5: DN 12, L 50
• PT1: DN 25, L 100
• PT3: DN 80, L 200

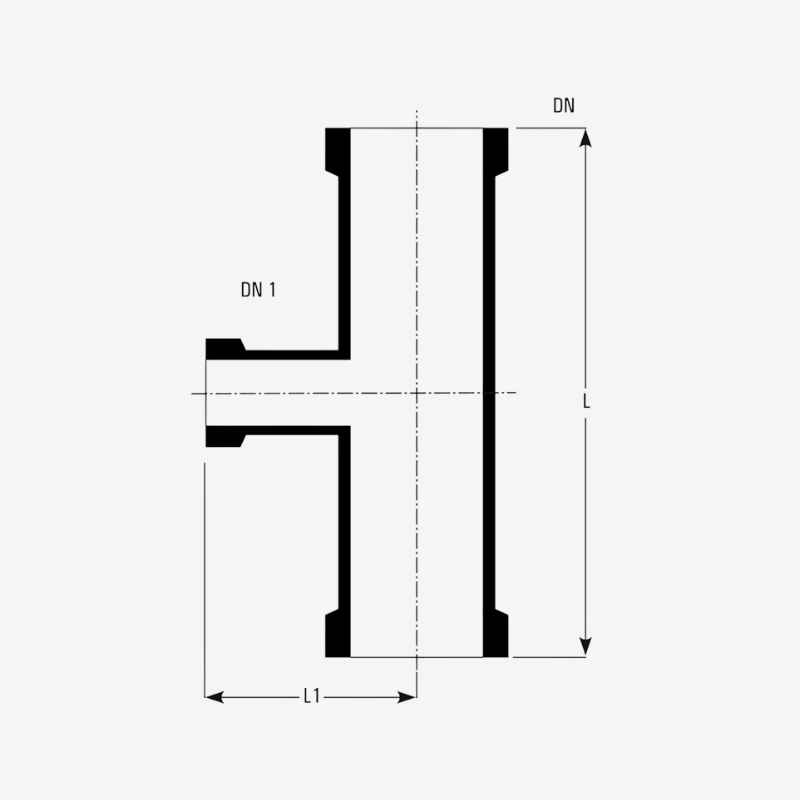

• PT12: DN 300, L 450 - Also Unequal Tees (reducing tees): The catalogue also lists PTU variants (e.g. PTU1/0.5, PTU2/1.5, etc.) with different branch sizes, including DN, DN1, L, and L1.
- Material: Borosilicate glass construction
- Vacuum / Pressure Compatibility: Designed to the same pipeline system standards
- Design Notes: Some items are marked as “available fast” in the catalogue listings
- Symmetry: All ports equal in dimension for standard PT (equal) series
Applications
Equal tees are applied in:
– Dividing a flow into two equal branches
– Merging two streams into one
– Branching network design where symmetry or equivalent flows are needed
– Laboratory and industrial pipelines where visual monitoring and chemical resistance are needed
