Key Features
- Advanced fractional distillation
- Precise separation capability
- Borosilicate glass construction
- Temperature control system
BOOK FREE HOME COLLECTION
Fractional Distillation Unit
Fractional Distillation Unit
Fractional Distillation Unit
Advanced fractional distillation unit for precise separation of liquid mixtures.
Fraction Distillation Unit Overview

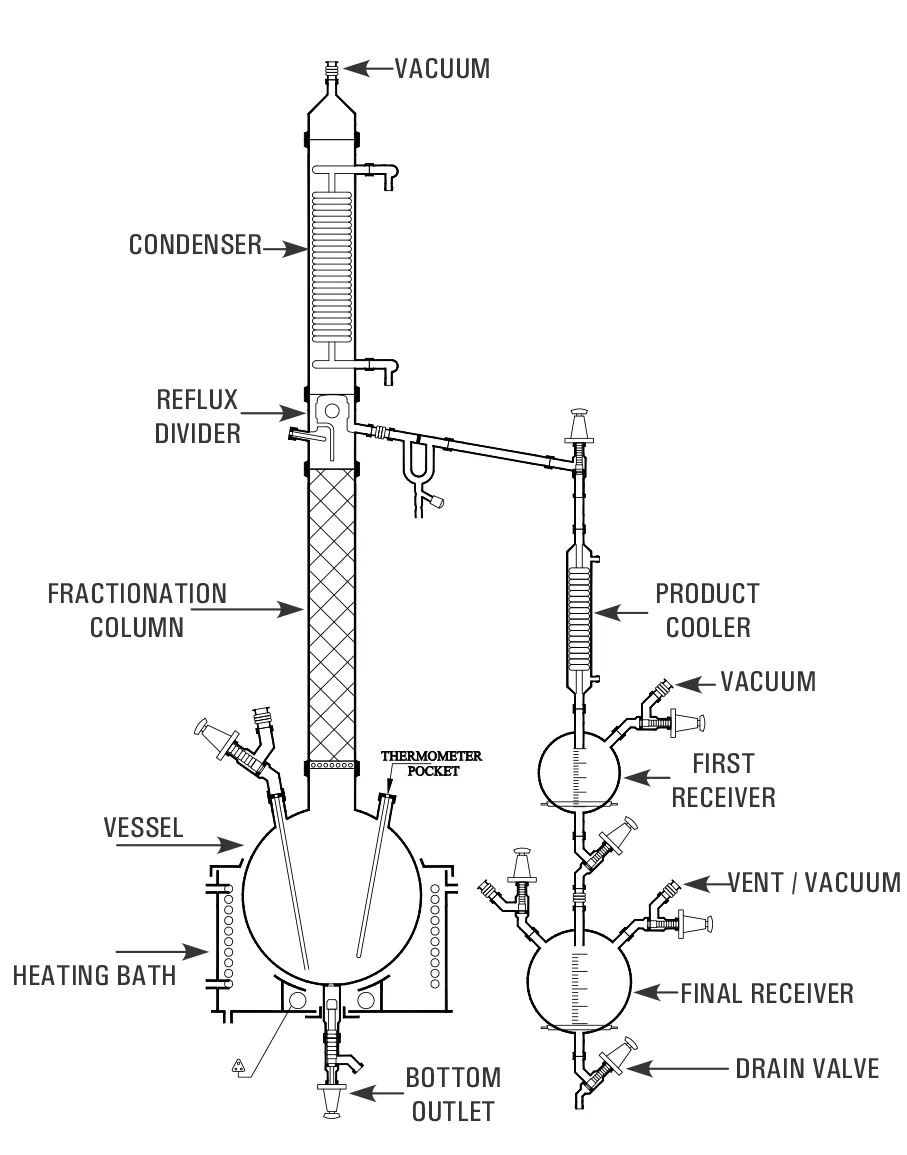

The Fraction Distillation Unit is a batch-type apparatus designed to separate a liquid mixture into multiple fractions based on differences in boiling point. It comprises a reboiler (vessel in a heating bath), a packed column, condenser, reflux system, and collection receivers. The vapor rises through the column, condenses and refluxes, and final fractions are drawn off at controlled rates. Units are offered in sizes such as 20 L, 50 L, 100 L, 200 L, 300 L, and 500 L, and can operate under atmospheric or full vacuum conditions. The design emphasizes reliable separation, flexibility of use, and modular integration with downstream systems.
Specifications
• Available capacities: 20 L, 50 L, 100 L, 200 L, 300 L, 500 L
• Heating bath power (kW): e.g., 4.0 kW for 20 L, 24.0 kW for 500 L
• Vapor line flange: DN 80 to DN 300 • Condenser heat transfer area (HTA): 0.35 to 4.00 m²
• Cooler HTA: ~0.10 to 0.70 m²
• Receiver sizes: 2 L, 5 L, 10 L, 20 L, 50 L
• Operating modes: atmospheric and full vacuum
• Materials: borosilicate glass, PTFE seals, corrosion-resistant supports
• Features: reflux control, drain valve, modular packing support
Applications
• Purification and fractionation of multicomponent mixtures
• Separation of close-boiling organic compounds
• Solvent recovery and recycling
• Process development and pilot scale trials
• Chemical, pharmaceutical, petrochemical, and fragrance applications
Because the unit supports high separation resolution, it is particularly useful when a simple distillation is insufficient to achieve the desired purity.
