Key Features
- Liquid-liquid extraction capability
- High efficiency separation
- Borosilicate glass construction
- Automated control systems
BOOK FREE HOME COLLECTION
Liquid-Liquid Extraction Unit
Liquid-Liquid Extraction Unit
Liquid-Liquid Extraction Unit
Specialized liquid-liquid extraction unit for efficient separation processes.
Liquid-Liquid Extraction Unit Overview

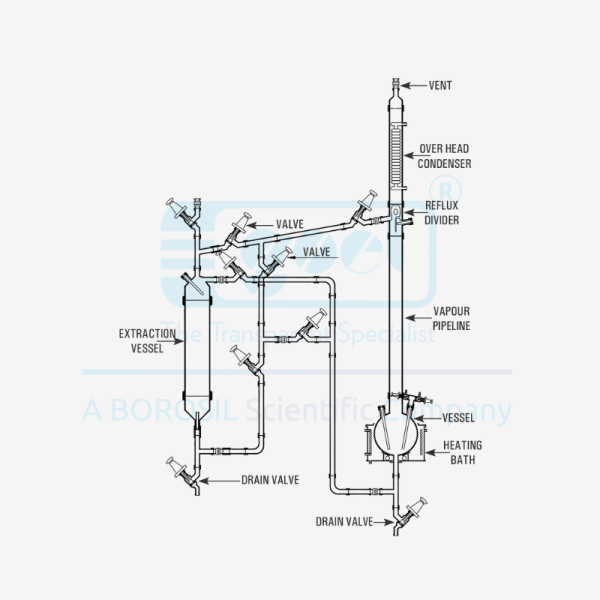

The Liquid-Liquid Extraction Unit is designed for semi-batch solvent extraction operation, where the feed liquid and solvent are contacted in an extraction vessel and then separated by phase partitioning. The system incorporates a reboiler, condenser, reflux divider, feed piping with valves, and an extraction column or vessel for countercurrent contact. Offered in sizes of 20 L, 50 L, 100 L, 200 L, and 300 L under atmospheric pressure operation, it allows controlled solvent circulation, phase contact, and regeneration. The design supports efficient solvent reuse and minimal solvent loss.
Specifications
• Available vessel sizes: 20 L, 50 L, 100 L, 200 L, 300 L
• Operating mode: atmospheric pressure
• Materials: borosilicate glass, PTFE valves, stainless steel supports
• Feed and solvent piping: includes valves for top or bottom entry
• Condenser and reflux arrangement for solvent recovery
• Extraction vessel with phase separation interface
• Temperature range: ambient up to 150 °C (depending on solvent) • Features: modular piping, solvent circulation, drain valves, sampling ports
Applications
• Available vessel sizes: 20 L, 50 L, 100 L, 200 L, 300 L
• Operating mode: atmospheric pressure
• Materials: borosilicate glass, PTFE valves, stainless steel supports
• Feed and solvent piping: includes valves for top or bottom entry
• Condenser and reflux arrangement for solvent recovery
• Extraction vessel with phase separation interface
• Temperature range: ambient up to 150 °C (depending on solvent)
• Features: modular piping, solvent circulation, drain valves, sampling ports
