Key Features
- Rotary evaporation capability
- Vacuum operation
- Temperature control
- Various sizes available
BOOK FREE HOME COLLECTION
Rotary Evaporator
Rotary Evaporator
Rotary Evaporator
Rotary evaporator for solvent removal and concentration.

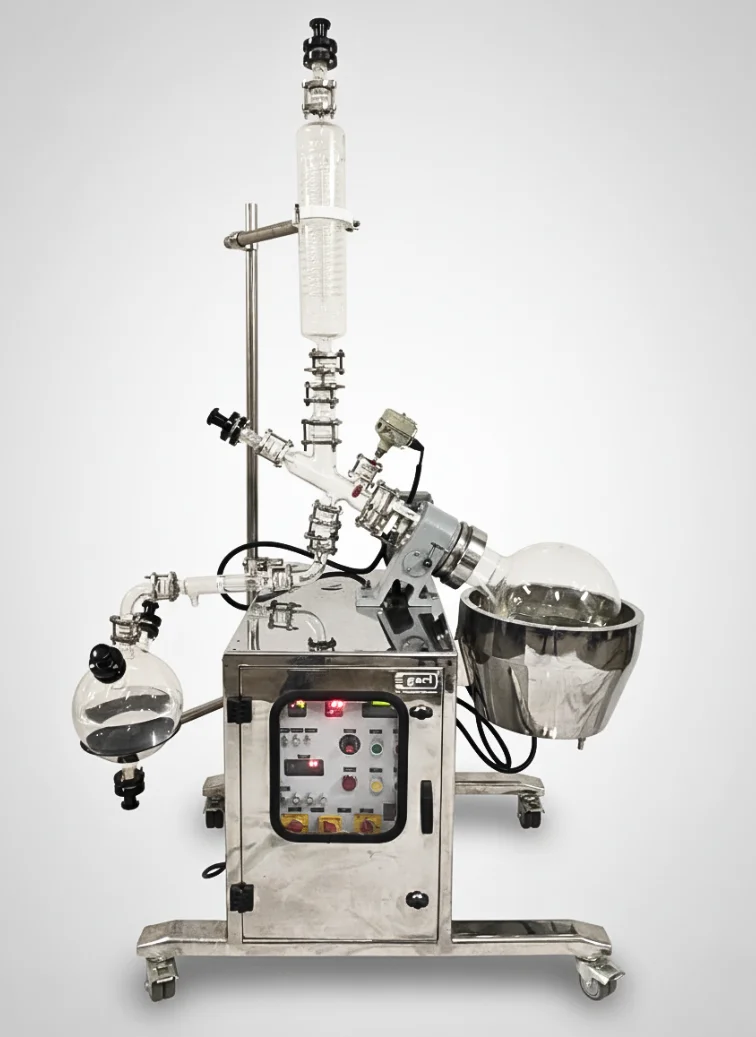

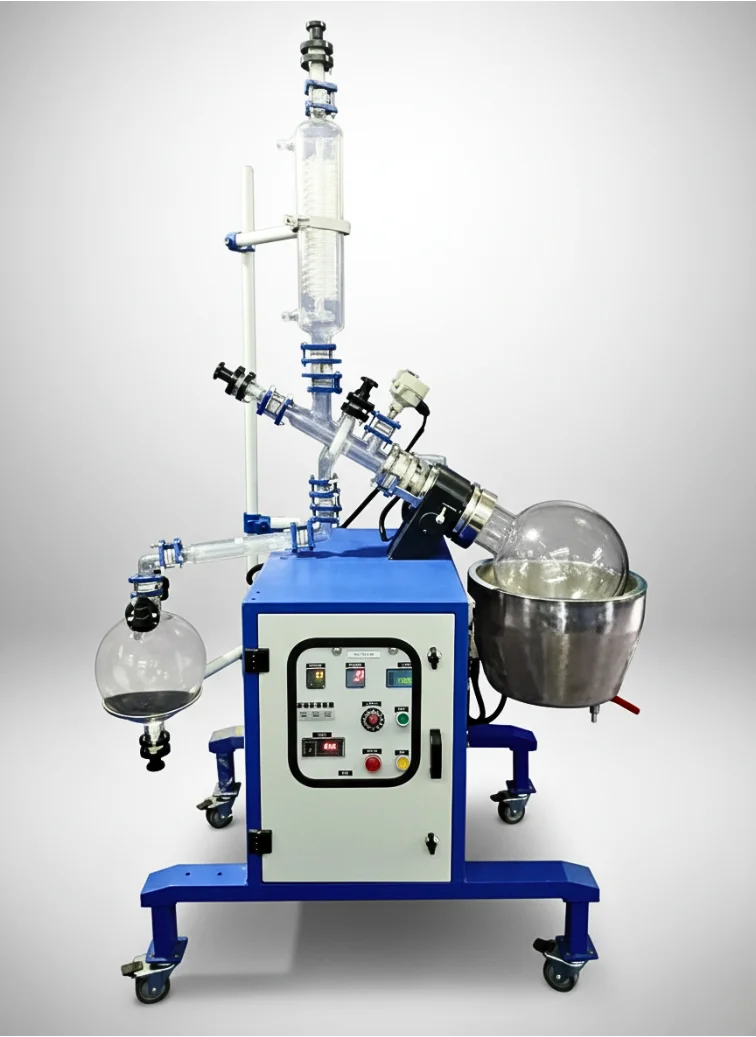

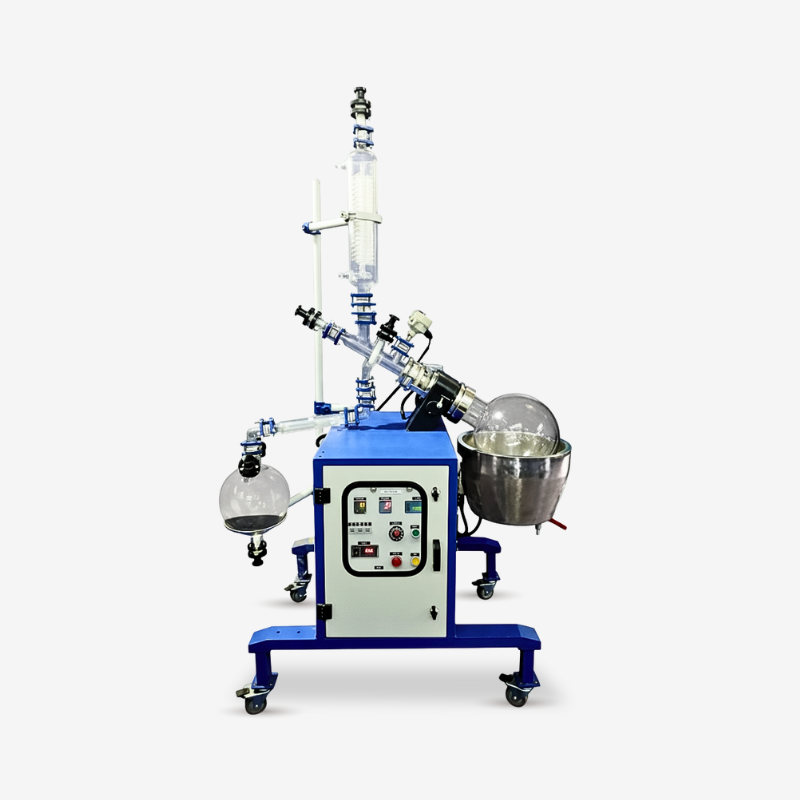

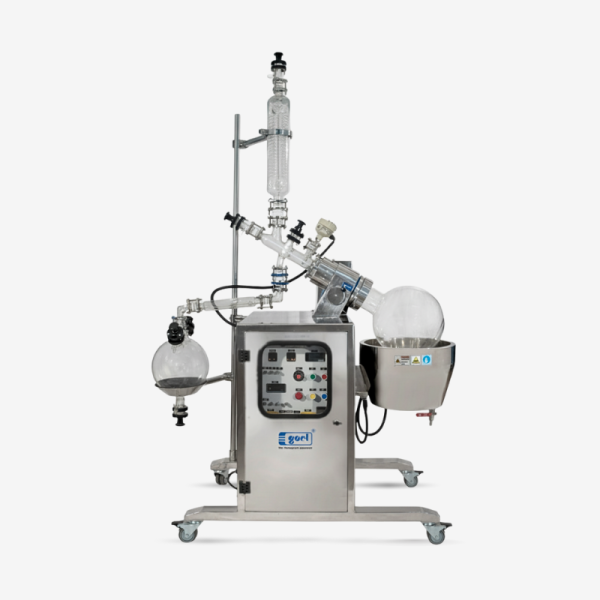

Rotary Vacuum Evaporator Overview
Goel Scientific manufactures precision rotary vacuum evaporators (rotary film evaporators) for laboratory, pilot and industrial use . These systems enable efficient evaporation of solvents under reduced pressure — lowering the boiling point and enabling gentle removal of volatile compounds . The units typically comprise a rotating flask, heating bath, condenser, vacuum controller, and receiver, all integrated to deliver controlled, reproducible performance . Goel’s models are designed for durability, chemical resistance, and automation, with capacities from small benchtop sizes up to large industrial volumes .
Specifications
| Model | Rotating Flask Capacity (ltrs.) | Rotating Speed (rpm) | Electric Motor Rating | Condense Cooling Area | Receiver Flask Capacity (ltrs.) | Power Supply (Volt/Hz) | Bath Rating |
|---|---|---|---|---|---|---|---|
| GRFE2 | 2 | 0-80 | 40 Watt | 0.15 | 1 | 230 V, 50 Hz | 2 |
| GRFE3 | 3 | 0-80 | 40 Watt | 0.15 | 1 | 230 V, 50 Hz | 2 |
| GRFE5 | 5 | 0-80 | 40 Watt | 0.15 | 2 | 230 V, 50 Hz | 2 |
| GRFE10 | 10 | 0-80 | 0.25 HP | 0.20 | 5 | 230 V, 50 Hz | 4 |
| GRFE20 | 20 | 0-80 | 0.25 HP | 0.30 | 10 | 230 V, 50 Hz | 4 |
| GRFE50 | 50 | 0-80 | 0.25 HP | 0.50 | 20 | 230 V, 50 Hz | 6 |
Applications
These rotary vacuum evaporators are used broadly across:
– **Chemical & Pharmaceutical industries** for solvent recovery, concentration of intermediates, purification, and distillation of temperature-sensitive compounds
– **Biotechnology & Life Sciences** laboratories for concentrating extracts, drying samples, or solvent removal under mild conditions
– **Food, Aroma & Natural Products** for extraction, concentration of aromatic compounds, and distillation of flavor / fragrance fractions
– **Environmental & Analytical Labs** for sample preparation (e.g. evaporating solvents before analysis) and cleanup of waste solvents
