Solid-Liquid Extraction Unit
Solid-Liquid Extraction Unit
Solid-Liquid Extraction Unit
Solid-liquid extraction unit for efficient solid material processing.
Solid-Liquid Extraction Unit Overview

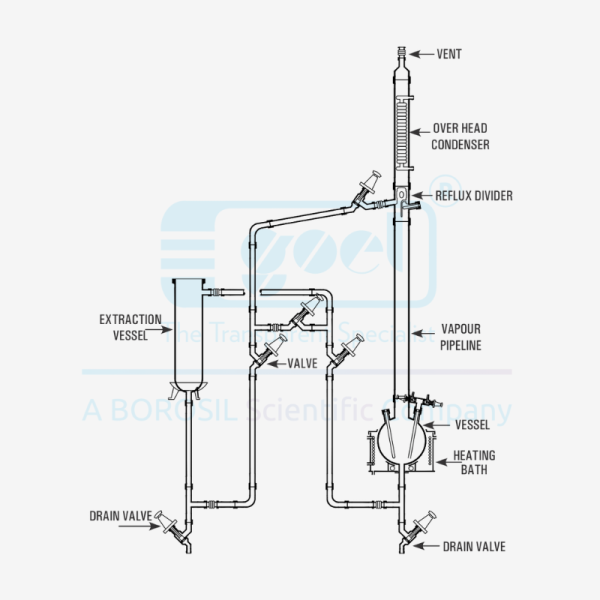

The Solid-Liquid Extraction Unit is used to extract soluble constituents from solid matrices using a liquid solvent. In this semi-batch system, the solid is often placed in a perforated or porous container (e.g. glass fiber bag) inside the extraction vessel, while solvent vapor condenses and percolates through the bed, dissolving the target solute and returning to the reboiler loop. The process is repeated until extraction is complete. Typical sizes include 20 L, 50 L, 100 L, 200 L, and 300 L under atmospheric conditions. The system includes vapor lines, condenser, reflux divider, drain valves, and optional solvent feed lines both top and bottom.
Applications
• Extraction of plant materials, powders, and solid matrices
• Recovery of active compounds in pharmaceuticals, botanicals, and food
• Process development for solid–liquid mass transfer
• Pilot scale evaluation of extraction parameters
• Educational demonstrations in chemical/bioprocess engineering
The setup allows measurement and optimization of contact time, solvent ratio, and extraction efficiency with clear visibility of the solid bed and solvent front.
Specifications
• Sizes: 20 L, 50 L, 100 L, 200 L, 300 L
• Operating mode: atmospheric
• Materials: borosilicate glass 3.3, PTFE seals, stainless framework
• Vapor line: e.g. 50 mm × 1 m dimensions
• Condenser HTA: ~0.35 m² for 20 L, larger for bigger units
• Drain and valves: bottom drain, reflux divider
• Solid container: glass fiber bag or perforated basket
• Optional: top/bottom solvent feed, sampling ports
• Temperature tolerance: up to ~150 °C (depending on solvent)
