Vaccum Distillation

Vaccum Distillation

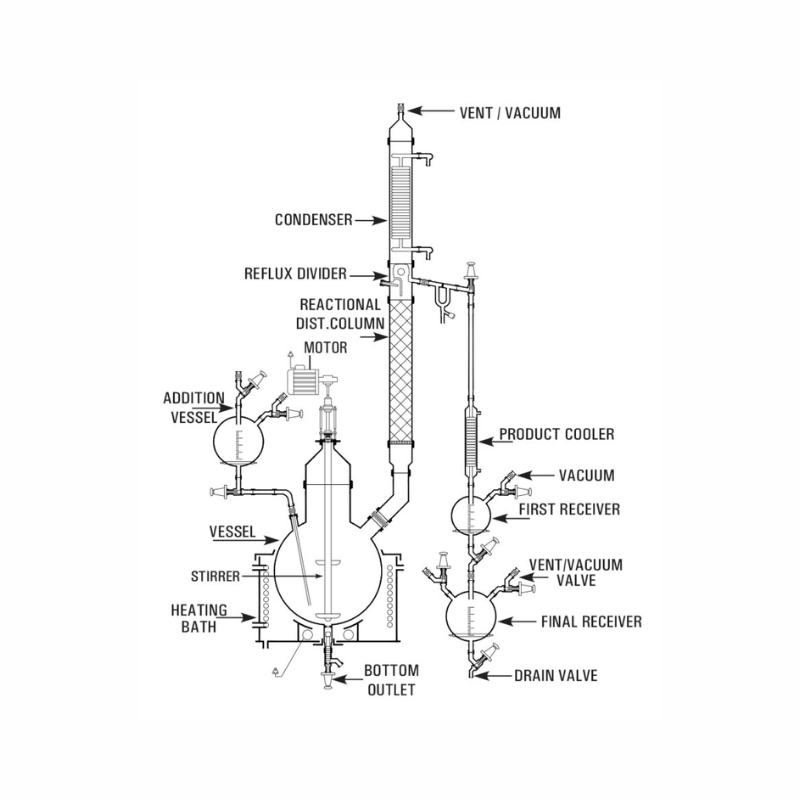

Vaccum Distillation is a versatile unit and can be used as a Reaction Distillation Unit, Fractional Distillation Unit or a combination of both. All features of the Reaction Distillation Unit and Fractional Distillation Unit are incorporated. Vacuum Distillation units are available in vessel sizes of 20, 50, 100 & 200L and is suitable for operation under atmospheric pressure and full vacuum.
Request a Quote

Key Features

  • Multi-functional design: Reaction + Fractional Distillation in one system
  • Operates under full vacuum and atmospheric pressure
  • Ideal for heat-sensitive and high-boiling substances
  • High-quality borosilicate glass construction for chemical resistance
  • Efficient heat transfer with optimized heating bath
  • Available in multiple capacities range

Specifications

Unit Cat. Ref. Reactor Capacity Bath KW Addition Vessel Vapour Line Condenser HTA M2 Cooler HTA M2 Receiver Size
FRU20 20 L 4.5 2 L 80 DN 0.35 0.10 2L,5L
FRU50 50 L 6.0 5 L 100 DN 0.50 0.20 5L,10L
FRU100 100 L 9.0 10 L 150 DN 1.50 0.35 10L,20L
FRU200 200 L 12.0 20 L 150 DN 1.50 0.35 10L,20L
FRU300 300 L 16.0 20 L 225 DN 2.50 0.50 20L,20L

Applications

The Vacuum Distillation Unit is widely used across multiple industries

  • Chemical Industry
  • Pharmaceutical Industry
  • R&D and Pilot Plants
  • Food & Beverage Industry
  • Petrochemical & Refinery
