Structure Fittings – Double Bend

Structure Fittings – Double Bend

A structure fittings double bend is a multi-leg angled joint used to route structural tubes around obstacles while maintaining framework continuity. Goel Scientific Glass Works Ltd. manufactures these fittings in cast iron, hot-dip galvanised iron and stainless steel (SS 304/316) for support structures used with borosilicate glass reactors, distillation columns and heat exchangers. The double-bend design helps redirect tubes around walls, utilities and existing equipment while maintaining structural strength. Goel Scientific uses certified raw materials and consistent socket dimensions matched to tube sizes. Each fitting is dimensionally inspected before dispatch, with custom bend angles and tube diameters available on request.
Request a Quote

Key Features

  • Multi-Leg Directional Routing: Structure fittings double-bend routes tubes around obstacles and create parallel offset paths with a single rigid component.
  • Precise Angular Tolerance: Consistent bend geometry ensures framework alignment and load continuity across the full assembly.
  • Tool-Only Installation: High-tensile grub screws secure tubes into sockets without welding, drilling, or hot work.
  • Corrosion-Resistant Material Options: Cast iron or galvanised iron for standard duty, and stainless steel for aggressive environments.
  • Modular Compatibility: Fully compatible with standard galvanised structure tubes and the complete Goel Scientific structural fitting product line.
  • Custom Engineering: Non-standard angles, non-standard tube sizes, and custom socket lengths available on request.

Specifications

Catalogue Reference Models & Dimensions

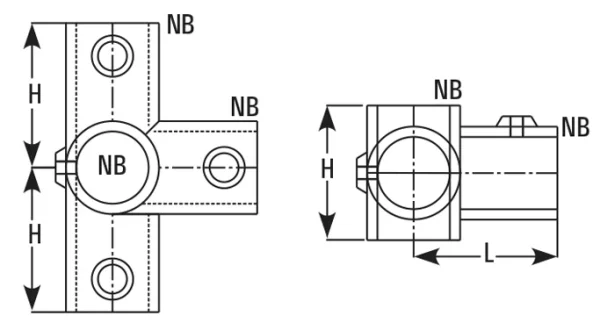

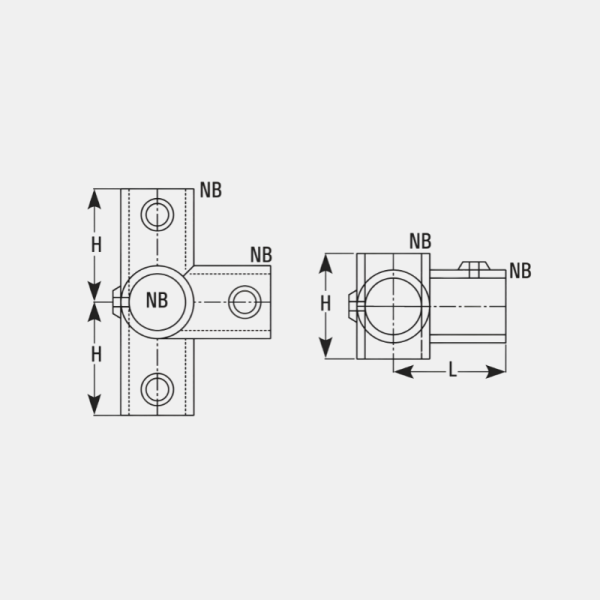

Cat. Ref. Nominal Bore NB (mm) Height H (mm) Length L (mm)
DBN25 25 51 52
DBN30 30 62 67
DBN40 40 68 70
DBN50 50 85 95

Material & Performance Summary

Parameter Standard Range
Configuration Two-leg, multi-directional angled bend
Material Construction Cast iron body (standard), Stainless Steel (SS 304 / SS 316)
Fixing Mechanism Internal bore matched to tube OD; locked via grub screws
Load Rating Up to 200 kg per fitting
Surface Finish Hot-dip galvanised or electropolished

Applications

  • Routing framework around plant utilities, pipes, and structural building columns.
  • Creating parallel offset paths and transition joints between different grid orientations.
  • Corner reinforcement in support structures for glass reaction units and distillation frames.
  • Modular rearrangements of structural paths around plant space constraints.
  • Custom layouts for laboratory benchtop rack assemblies where straight runs obstruct access.

Why Choose Goel Scientific Glass Works Ltd.?

Established in 1977 and headquartered in Vadodara, Goel Scientific Glass Works Ltd. (a Borosil Scientific company) manufactures the structural fittings double bend as part of its complete structural framework product line. Serving over 2,800 customers across pharmaceutical, chemical, and life-science industries, Goel Scientific supplies the double bend to strict dimensional standards with hot-dip galvanised or electropolished finishes. Working with an established single-source supplier ensures exact interchangeability across the Goel Scientific structural product line and long-term availability of matching components.

FAQs

A structure fittings double bend is used to route structural tubing around obstacles, create parallel offset paths, and change framework direction in support systems for borosilicate glass process equipment.

It provides a multi-leg directional offset in a single component, eliminating cumulative alignment errors that occur when chaining multiple single-bend fittings together.

Yes, structure fittings double bend sockets are engineered to match standard nominal bore tube diameters (NB 25 to NB 50). Internal bores fit snugly over tube external diameters and lock securely using grub screws.

Standard models feature a durable cast iron body with hot-dip galvanised coating, while stainless steel 304/316 variants are available for high-corrosion environments.

Yes, Goel Scientific manufactures double bend fittings in non-standard tube diameters, custom bend angles, and specialised socket lengths upon request.
