Structure Fittings – Equal Bracket

Structure Fittings – Equal Bracket

A structure fittings equal bracket (EBT Series) is a right-angle inter-tube junction component used to form rigid orthogonal connections between structural tubes of the same nominal bore in support frameworks for borosilicate glass process equipment. Goel Scientific Glass Works Ltd. manufactures the EBT equal bracket series in robust cast iron (hot-dip galvanised) and 304/316 stainless steel variants, designed to slide smoothly onto matching structural tubes and lock securely via grub screws without welding or hot work.
The equal-leg geometry provides fitters with a symmetric orthogonal junction that transfers lateral and vertical loads evenly across horizontal and vertical members, maintaining frame alignment and preventing twisting stresses.
Request a Quote

Key Features

  • Symmetric Equal-Leg Geometry: EBT series equal brackets distribute mechanical loads evenly across both perpendicular tube branches.
  • Tool-Only Modular Assembly: Slides directly over matching tubes and locks via grub screws, enabling rapid assembly, adjustment, or disassembly without welding.
  • Precise Socket Dimensions: Accurate inner socket tolerances ensure full engagement along specified socket depths (h and L), keeping the framework square.
  • Offset & Clearance Control: Engineered L1 clearance dimensions allow optimal frame offset for secondary bracing and equipment mounting.
  • Corrosion-Resistant Options: Standard galvanised cast iron for plant environments, with electropolished SS 304/316 for aggressive atmospheres and cleanrooms.

Specifications

The performance specifications and catalogue reference dimensions for our standard Structure Fittings Equal Brackets (EBT Series) include:

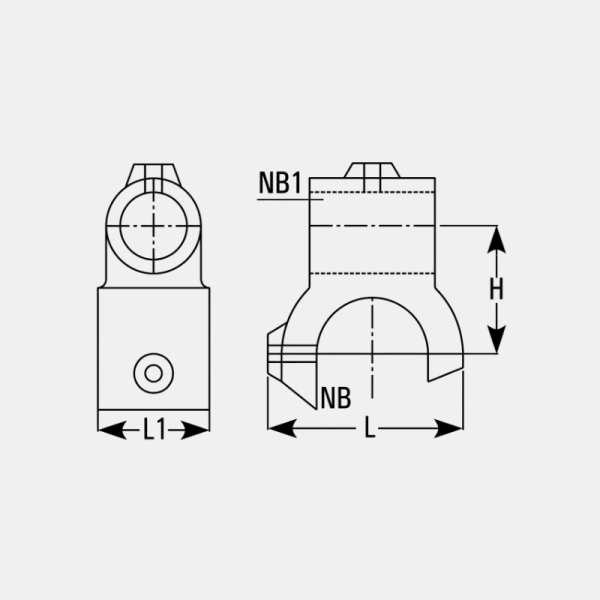

Catalogue Ref Tube Size NB (mm) h (mm) L (mm) L1 (mm) Standard Material
EBT25 25 mm 47 mm 63 mm 47 mm Cast Iron / Stainless Steel
EBT30 30 mm 52 mm 76 mm 52 mm Cast Iron / Stainless Steel
EBT40 40 mm 60 mm 85 mm 60 mm Cast Iron / Stainless Steel
EBT50 50 mm 70 mm 95 mm 60 mm Cast Iron / Stainless Steel

Applications

  • Orthogonal Frame Junctions: Forming right-angle corners and frame edges in modular support grids for glass plants.
  • Vertical to Horizontal Bridging: Connecting main vertical support columns to horizontal tube runners of matching Nominal Bore.
  • Secondary Bracing Attachments: Providing rigid anchor points for diagonal cross-members and secondary support ties.
  • Pilot Plant & Modular Racks: Constructing reconfigurable, multi-tier equipment scaffolds for reactors, condensers, and distillation columns.
  • Plant Retrofits: Enabling fast frame modifications and secondary additions without shutting down operations for welding.

Why Choose Us?

Goel Scientific Glass Works Ltd., a Borosil Scientific company established in 1977 and headquartered in Vadodara, Gujarat, is a pioneer in industrial glass equipment and structural support frameworks. Serving over 2,800 customers across pharmaceutical, chemical, and life-science industries globally, Goel Scientific manufactures the EBT Series Structure Fittings Equal Bracket to strict dimensional tolerances. Every bracket is cast from high-grade raw materials, precision-machined, hot-dip galvanised or electropolished, and dimensionally inspected before despatch. By sourcing directly from Goel Scientific, you ensure 100% interchangeability with standard galvanised and stainless steel tubular framework systems across your facility.

FAQs

A structure fittings equal bracket is used to connect two structural tubes of the same nominal bore at a right angle, creating rigid horizontal-to-vertical junctions in glass process support frames.

Equal brackets feature precision sockets that slide directly over matching structural tubes. They are locked into position using threaded grub screws, requiring only basic hand tools for installation.

Standard brackets are manufactured from high-durability galvanised cast iron. For cleanroom and highly corrosive environments, Goel Scientific supplies precision-cast SS 304 and SS 316 stainless steel variants.

Yes, EBT brackets are specifically dimensioned to match standard 25mm, 30mm, 40mm, and 50mm Nominal Bore (NB) galvanised and stainless steel structural tubes.

No, equal brackets eliminate the need for welding, cutting, or hot-work permits, making them ideal for safe on-site installation and future framework reconfigurations.
