A brief introduction to the evolution of CYLINDRICAL SHAPED Rotary Film Evaporator made of Borosilicate Glass!! – All NEW Innovation from GOEL, India.
Rotary Film Evaporator is a very regular usage product in the R & D of chemical & Pharmaceutical industry.
It is also being used nowadays for manufacturing purposes for high-value pharmaceutical & specialty chemical products.
The existing rotary film evaporators used are spherical evaporating flasks. What happens is when the requirement of volume for the process is practically very difficult to handle the size beyond 50 liters.
Chemical reactors are cylindrical in shape with a particular L/D ratio in general, which is given for a particular reaction surface area.
The cylindrical vessel has a higher surface area spherical vessel. This promped us to think in the direction; of why only a spherical vessel is used when we can exploit the advantage of cylindrical shape evaporation flask in a rotary film evaporator.
Thus the innovation for a better rotary film evaporator with better efficiency in terms of rate of evaporation was done.
The results showed that the rate of evaporation was enhanced by 20% as compared to the convention spherical-shaped rotary film evaporator.
Also, the mechanical stability was far superior to the spherical vessel, indicating a drive rotary film evaporator.

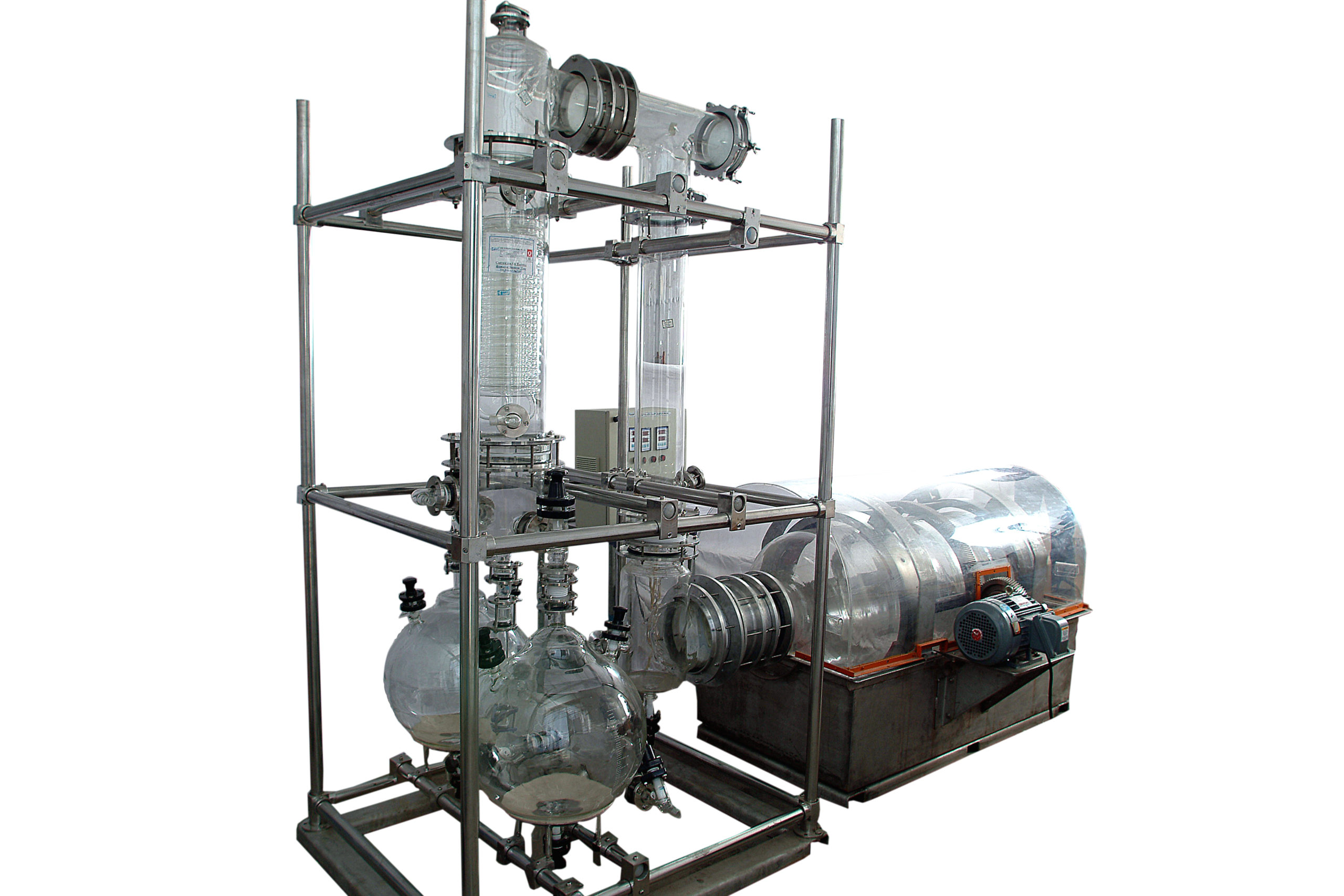

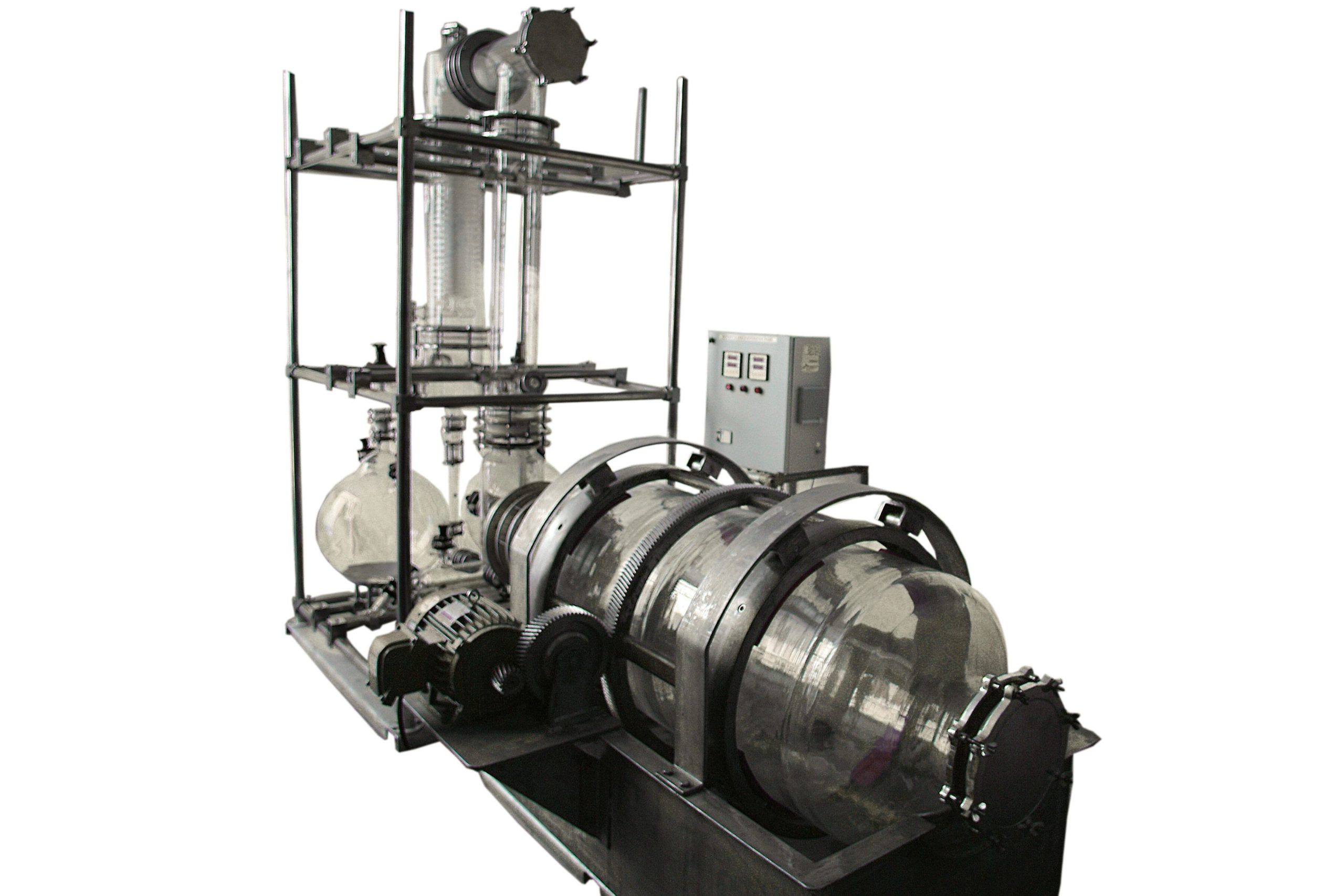

Then we designed the largest Rotary Film Evaporator Jumbo Rotary, capacity of 400 Ltr made from Borosilicate Glass 3.3 Cylindrical Evaporation flask.
in a spherical flask rotary film evaporator, the drive has inclined the flask held from its neck only. Thus inclined cantilever type of loading happens on the rotating assembly.
This is highly unstable mechanically as for the same neck size of a flask, higher stresses develop in the flask neck compared to a horizontal drive simply supported flask as in the case of cylindrical rotary film evaporator.

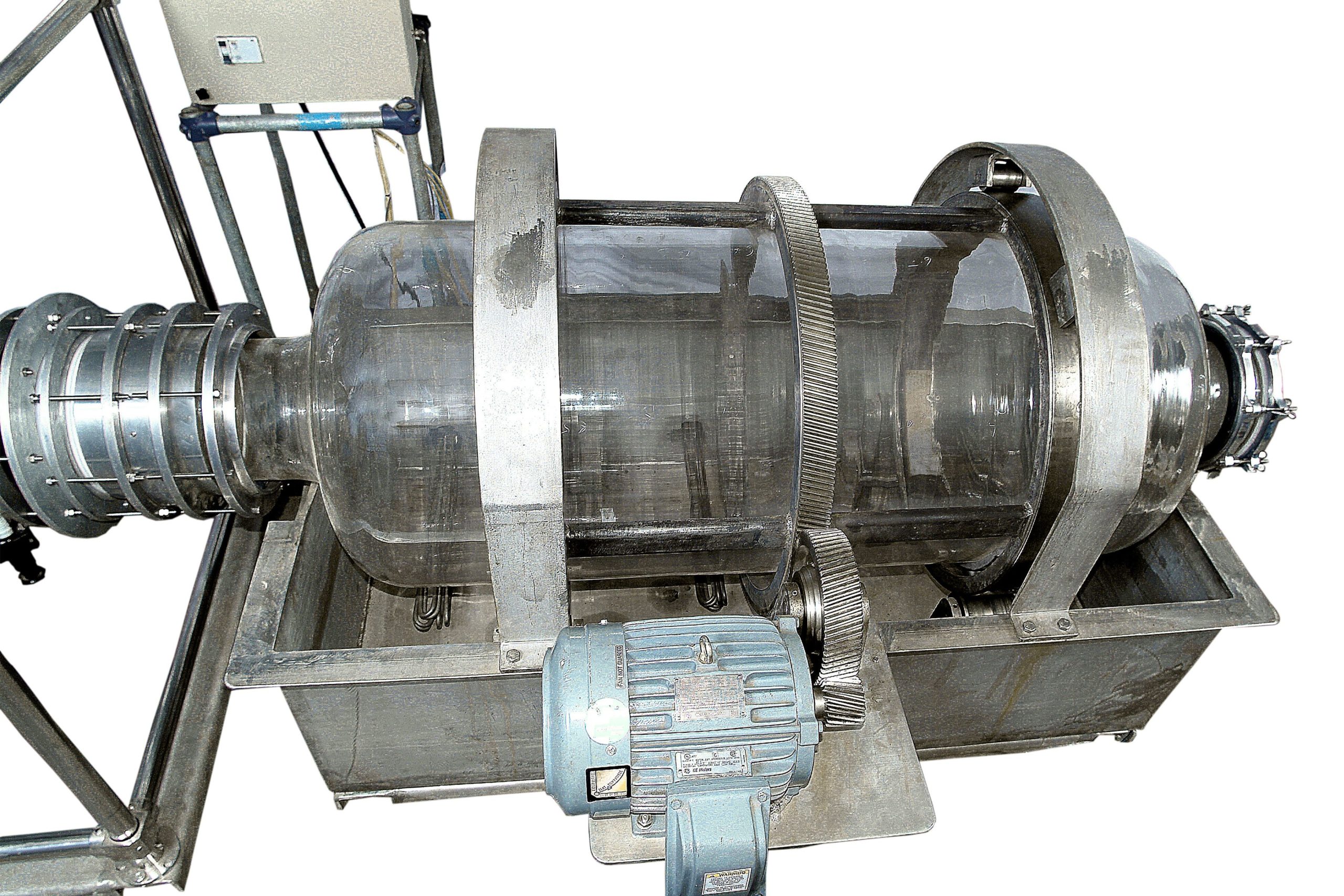

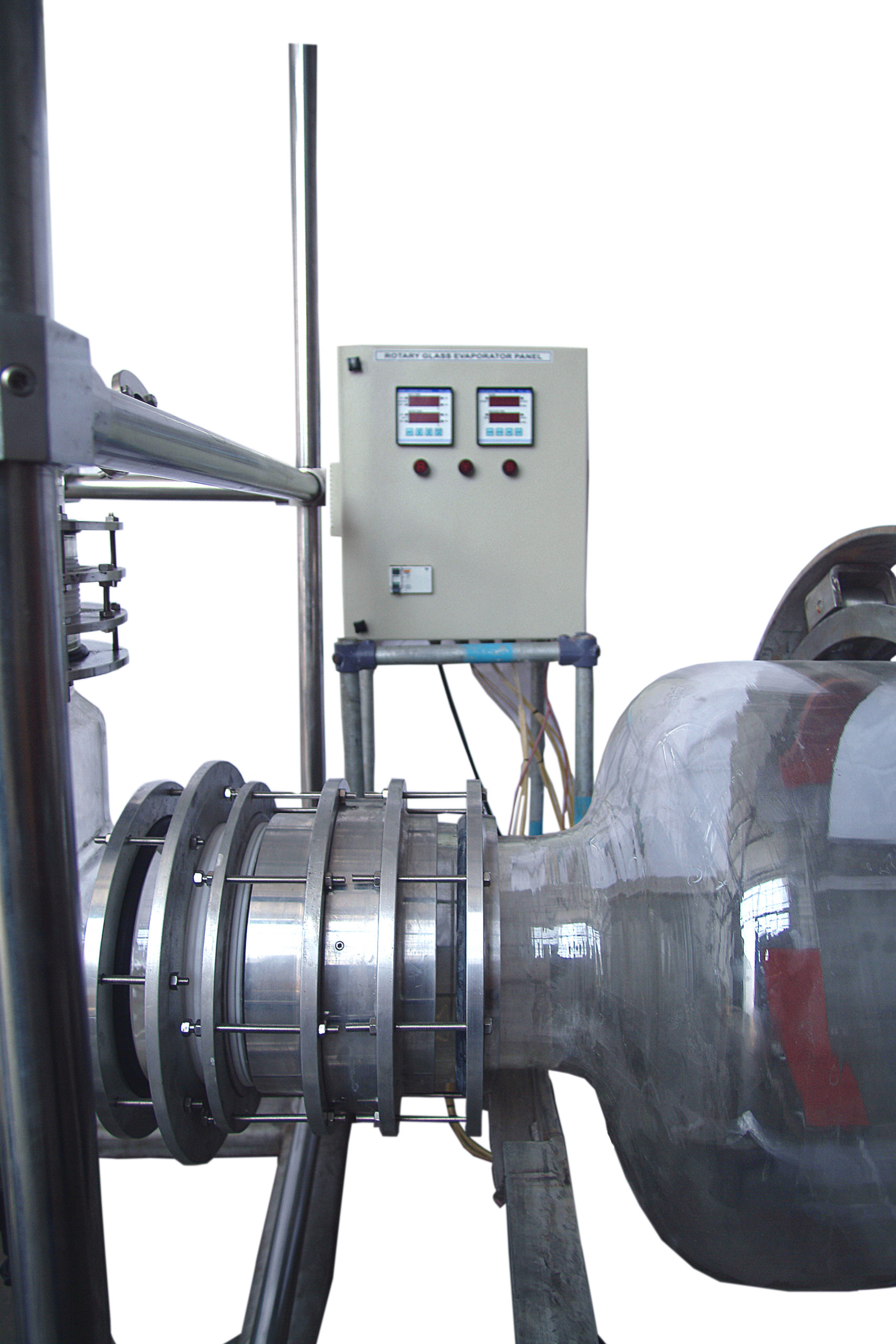

The cylindrical flask of the jumbo rotary evaporator is also held by the neck, but the drive centerline is not inclined, instead, it is horizontal.
The rotating flask is also supported axially at two cross-section circumferences over its whole length, thus making the loading effectively a simply supported one and not a cantilever type.
This reduces the stresses on the neck of the flask and is the only safer solution for making a higher size rotary film evaporator.
Another advantage of the cylindrical flask is its lower diameter compared to a spherical flask for a particular volume which is a very critical factor for glass MOC as the pressure rating goes down drastically with the increase in diameter.

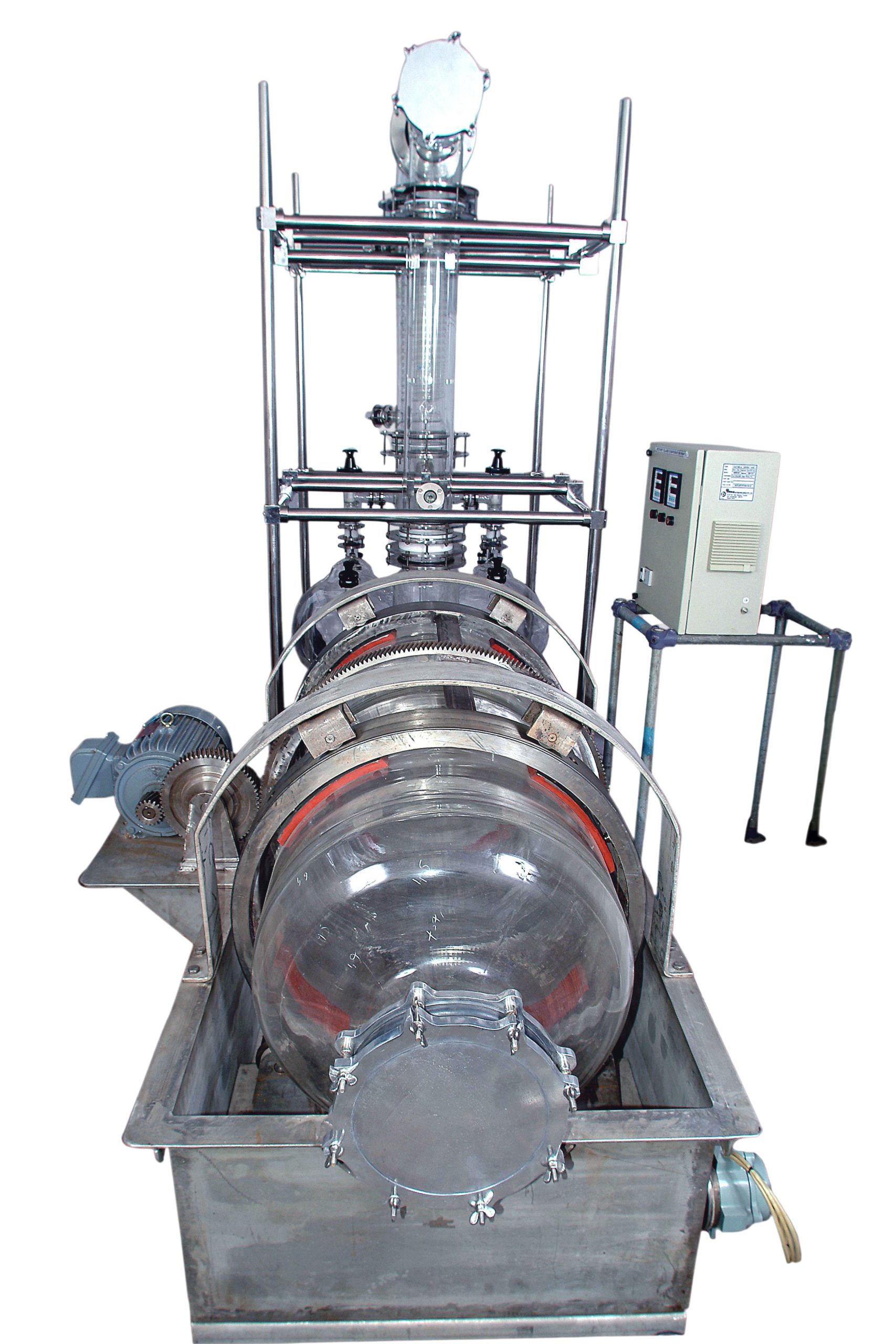

Also, material removal & cleaning becomes easier from the cylindrical rotary film evaporator. It is simply opening the quick release coupling from one end. The material can be easily scooped out whereas in a spherical rotary film evaporator the whole flask is to be separated out & spherical flasks become too bulky and handling becomes very difficult for sizes above 100 Ltrs.
This development has overcome the constraint of the size in Rotary Film Evaporators from laboratory scale applications to industrial applications for sizes above 100 Liters i.e.
| TECHNICAL SPECIFICATIONS | |||
| ITEM | MODEL: GRFE 100 L | MODEL: GRFE 200 L | MODEL: GRFE 400 L |
| Cylindrical Flask | 100 L | 200 L | 400 Ltrs. |
| Heating Bath | SS 304 5 Kw x 3 = 15 Kw Flameproof | SS 304 6 Kw x 3 = 18 Kw Flameproof | SS 304 9 Kw x 3 = 27 Kw Flameproof |
| Canopy | Polycarbonate Canopy | Polycarbonate Canopy | Polycarbonate Canopy |
| Drive Motor | 2 HP (Flameproof), 50 Hz 415 V, 3 phase motor RPM: 2-50 RPM, Variable, VFD Based | 3 HP (Flameproof), 50 Hz 415 V, 3 phase motor RPM: 2-50 RPM, Variable, VFD Based | 5 HP (Flameproof), 50 Hz 415 V, 3 phase motor RPM : 2-50 RPM, Variable, VFD Based |

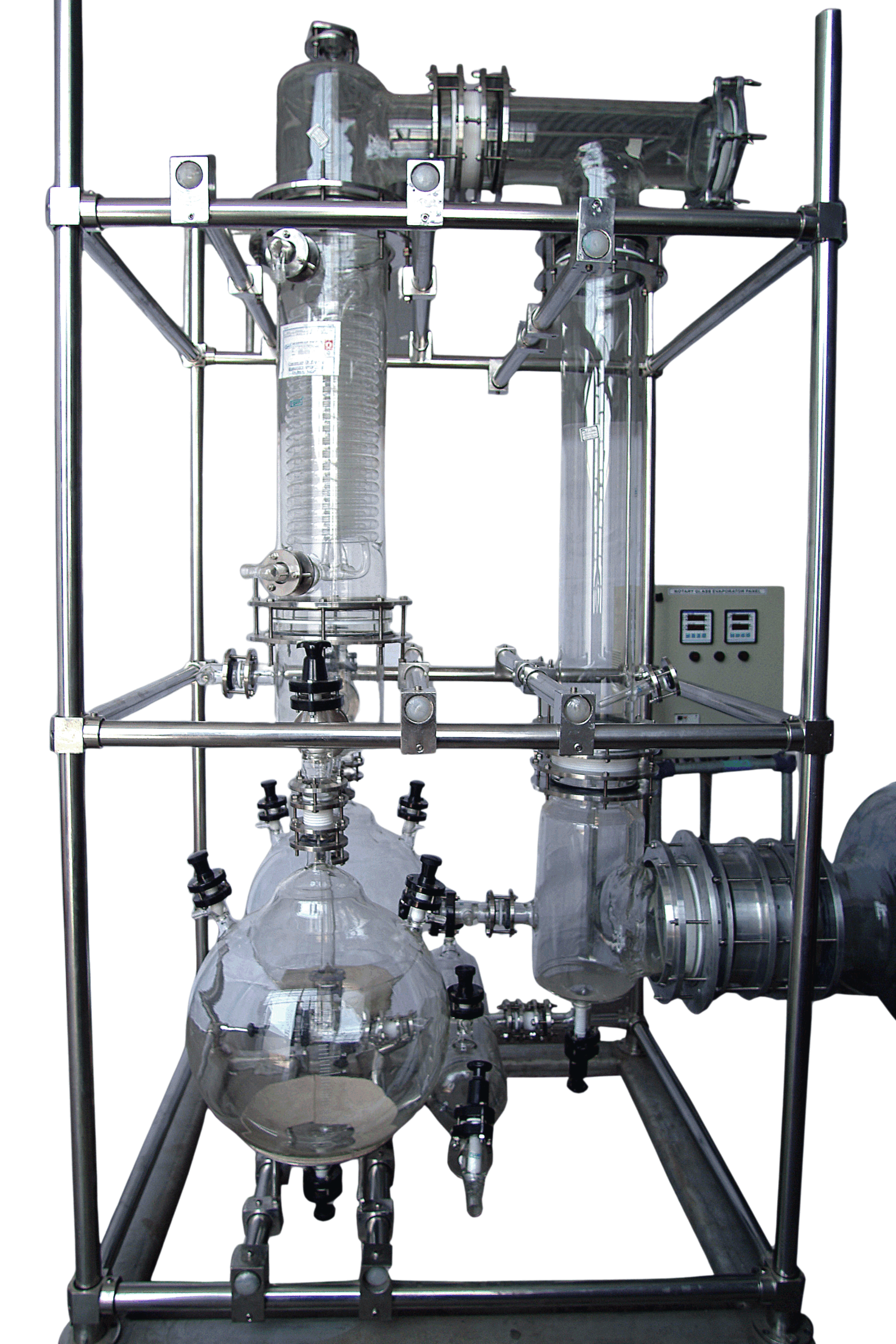

| Glass Specification | All contact Parts are made of Borosilicate – 3.3 glass / PTFE Heat Exchanger – 1.5 m2 x 1 Nos. Heat Transfer, 6” Small Diameter Receivers 20 Ltrs with Drain, Vacuum & Vacuum Release Valve Seals & Gasket PTFE & GFT Tubular Structure & Structure Parts SS 304 | All contact Parts are made of Borosilicate – 3.3 glass / PTFE Heat Exchanger – 1.5 m2 x 1 Nos. Heat Transfer, 6” Small Diameter Receivers 20 Ltrs with Drain, Vacuum & Vacuum Release Valve Seals & Gasket PTFE & GFT Tubular Structure & Structure Parts SS 304 | All contact Parts are made of Borosilicate – 3.3 glass / PTFE Heat Exchanger – 1.5 m2 x 1 Nos. Heat Transfer, 6” Small Diameter Receivers 20 Ltrs with Drain, Vacuum & Vacuum Release Valve Seals & Gasket PTFE & GFT Tubular Structure & Structure Parts SS 304 |
| Dimension (Approx) | 2000(L) x 1000(W) x 2000(H) mm | 2500(L) x 1200(W) x 2200(H) mm | 3600(L) x 1500(W) x2500(H) mm |
Up to 800 Liters with a diameter of 800 mm!!!
